Product name

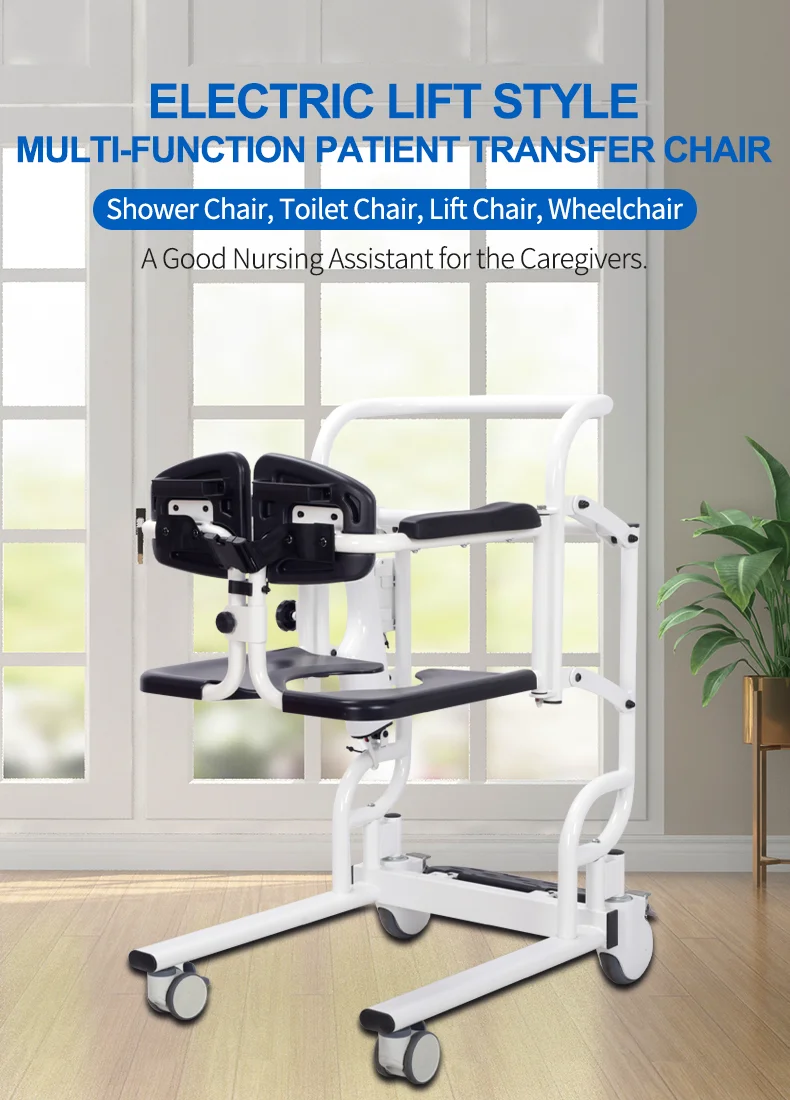

Multi-function Transfer Chair (Electric Lift Style)

Model No.

ZW388D

Electric drive pusher

Input Voltage: 24V
Current: 5A
Power: 120W

Battery capacity

2500mAh

Features

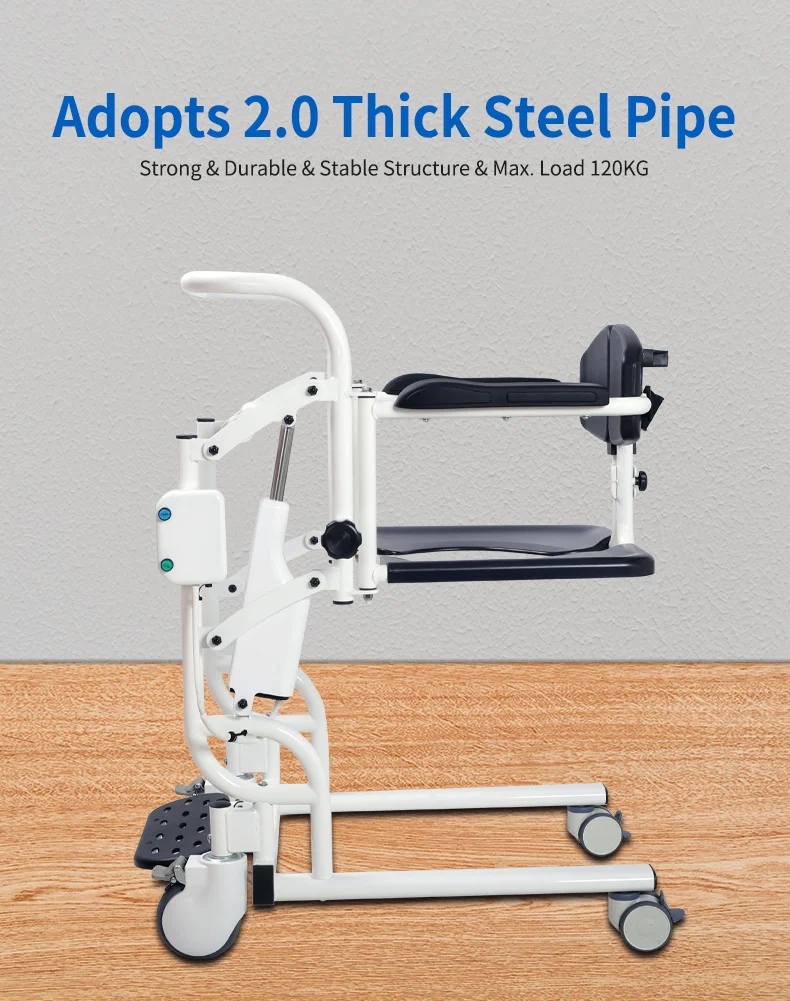

1. Made of High-Strength Steel structure, Solid and Durable, has maximum load-bearing 120KG, equipped with medical-class mute
casters.
2. Equipped with dismountable bedpan, convenient to go out, no draging, easy replacement.

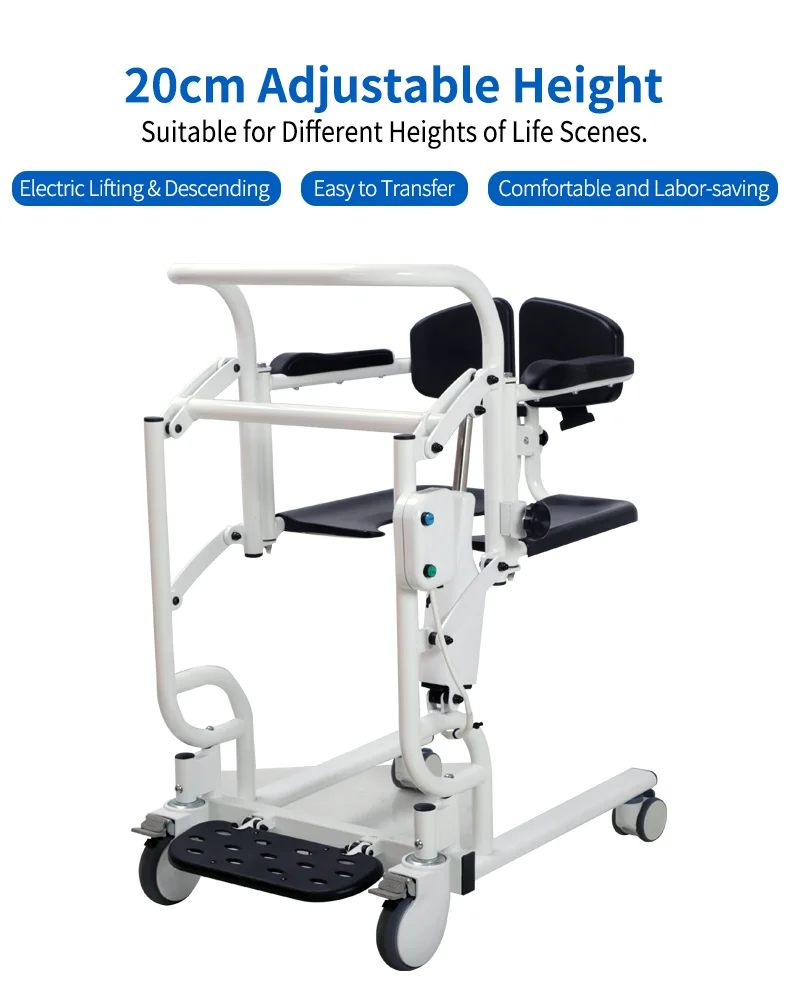

3. Wide range of height adjustable, applicable to many scenarios.
4. Can stored under the bed or sofa which needs a space of 12CM height, it will save effort and be convenient.

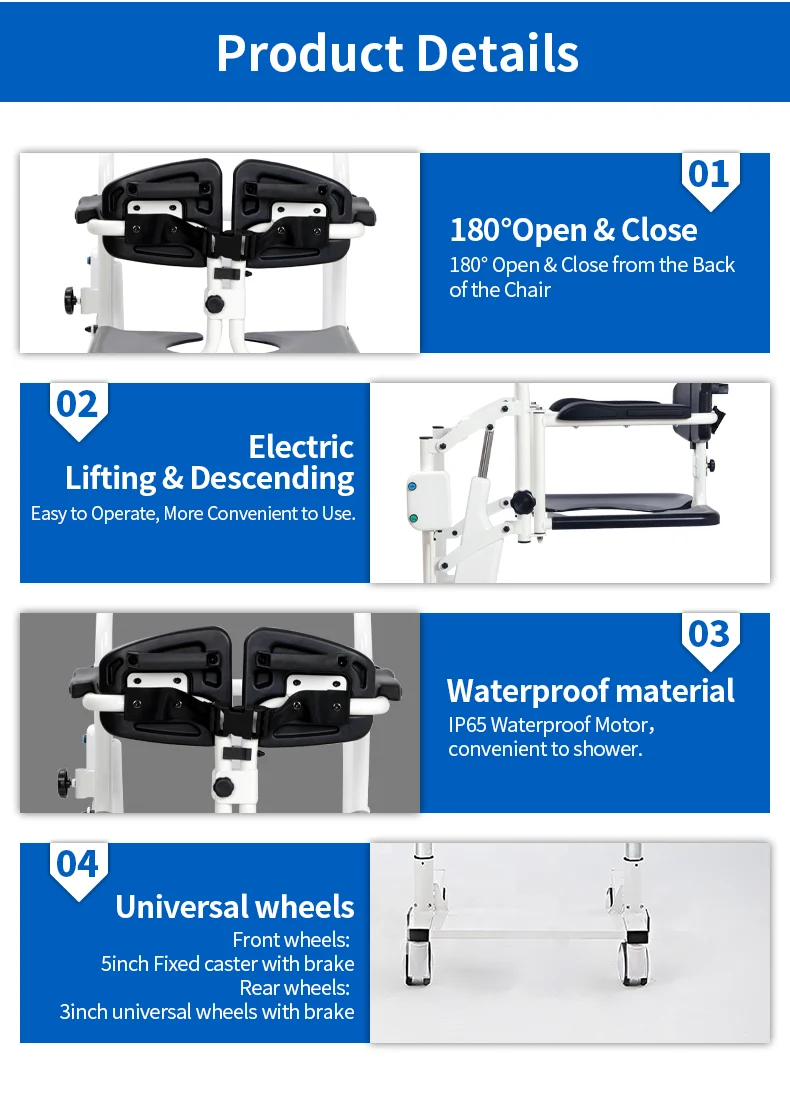

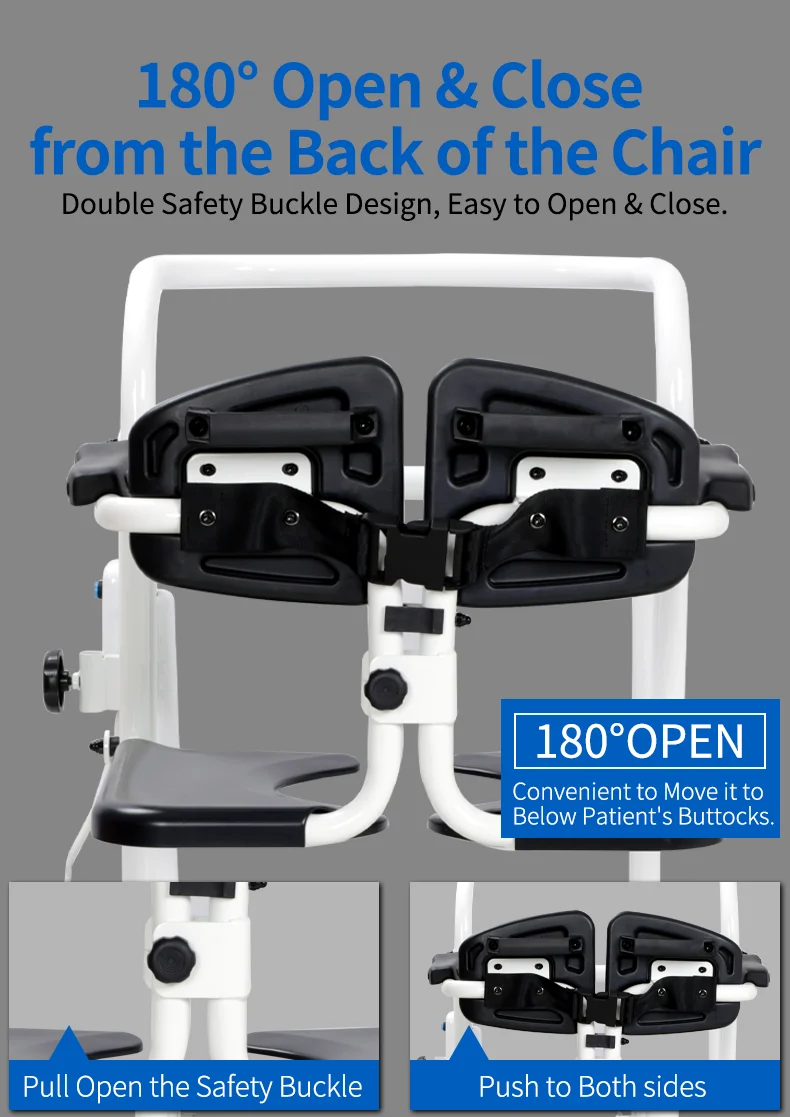

5. Can open and close to 180 degrees from the back, convenient to get in and out, save effort to lift up, handled easily by one
person, reduce nursing difficulty. The seat belt can prevent forerakes or falling down.
6. The drive system consists of lead screw and chain wheel, output stable and everlasting power. The four-wheel brake design makes
the product safe and reliable.
7. Chair height adjusting range is 41CM-60.5CM.The whole chair adopts waterproof design, convenient for toilets and taking a
shower. Move flexible, convenient places to dine.
8. Foldable rocking handles can save space, easily pass through the door in 60CM width. Quick assembly design.

Seat Size

48.5 * 39.5cm

Seat Height

41-60.5cm (adjustable)

Front Casters

5 Inch Fixed Casters

Real Casters

3 Inch Universal Wheels

Load-bearing

120KG

Height of Chasis

12cm

Product Size

L: 83cm * W: 52.5cm * H: 83.5-103.5cm (adjustable height)

Product N.W.

28.5KG

Product G.W.

33KG

Product Package

90.5*59.5*32.5cm
