physical therapy leg exercise bike stroke rehabilitation equipment training passive active trainer

physical therapy leg exercise bike stroke rehabilitation equipment training passive active trainer

Regular price $2,771.65 USD
Regular price $0.00 USD Sale price $2,771.65 USD
Sale Sold out
Default Title

SPECIFICATIONS

Brand Name: LanYuXuan

Origin: Mainland China

DIY Supplies: ELECTRICAL

Certification: CE

Place of Origin: jiangsu,china

Brand Name: QIANJING

Model Number: AP-ZXQ

Instrument classification: Class II

Warranty: 1 Year

After-sale Service: Online technical support

Product name: Upper and Lower Limbs Rehabilitation Trainer

Type: AP-ZXQ-05,AP-ZXQ-06,AP-ZXQ-07,AP-ZXQ-08,AP-ZXQ-09

Application: Clinic and Rehab center hospital home

Function: Upper and lower Limbs Trainer

Color: White and Blue

Material: ABS and Steel

Certificate: CE& ISO13485

Size: 760*710*1160mm

OEM: Available

MOQ: 1PCS

Friends, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! You can also add my Whats app 86+15874218309 to contact me. Tel: 86+15874218309 Email: 1774176902@qq.com Wechat: 15874218309
Products Description

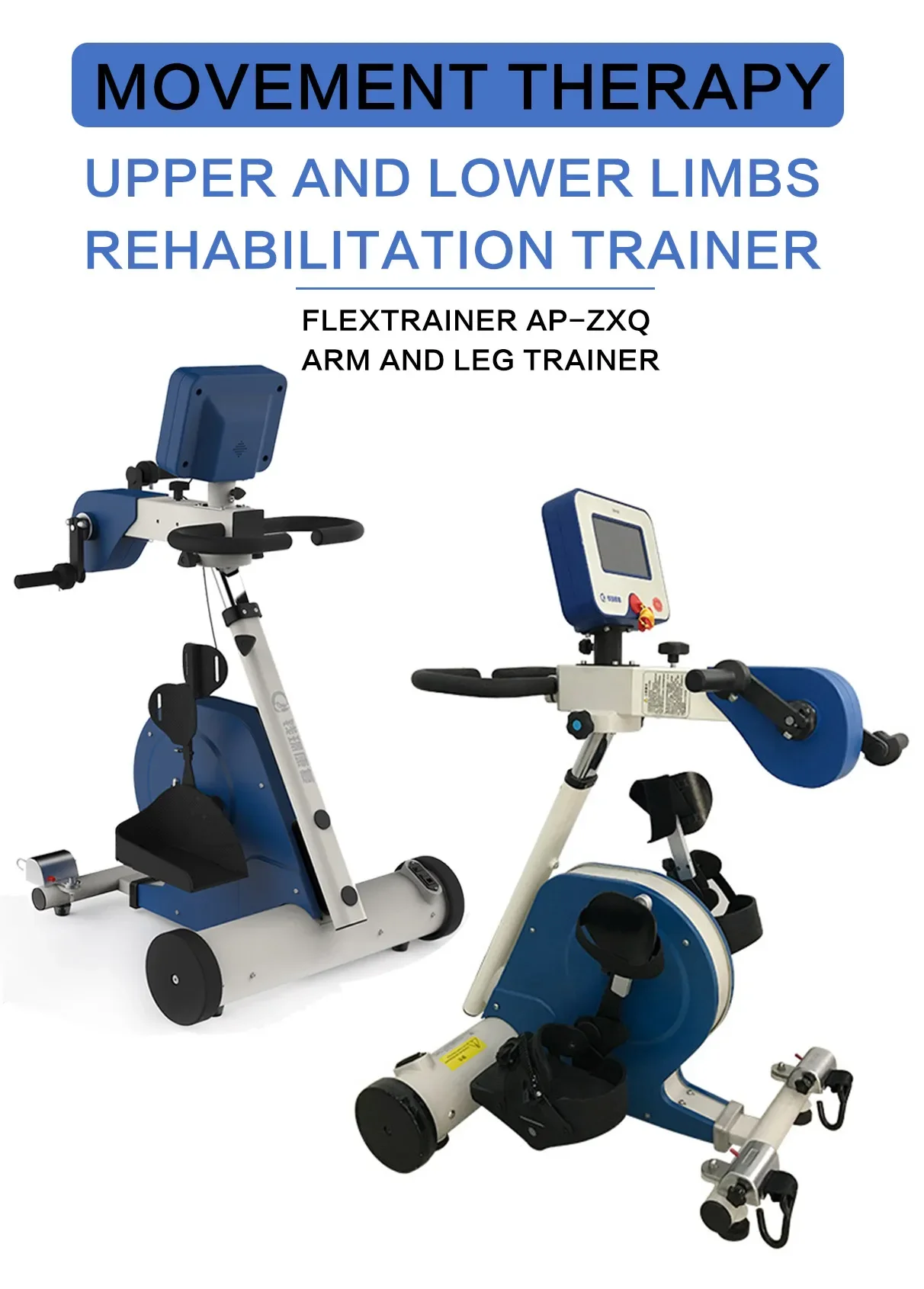

Upper and Lower Limbs Rehabilitation Trainer
FlexTrainer AP-ZXQ Arm and Leg Trainer The therapy trainer provides arm and leg biofeedback driven exercise.Options in four different modes for patients with varying physical limitations. Its simple to use compact design, on-board touchscreen LCD and preset exercise modes make it easy to move and use,Enabling therapists to treat patients more effectively and efficiently.
Features and Advantages

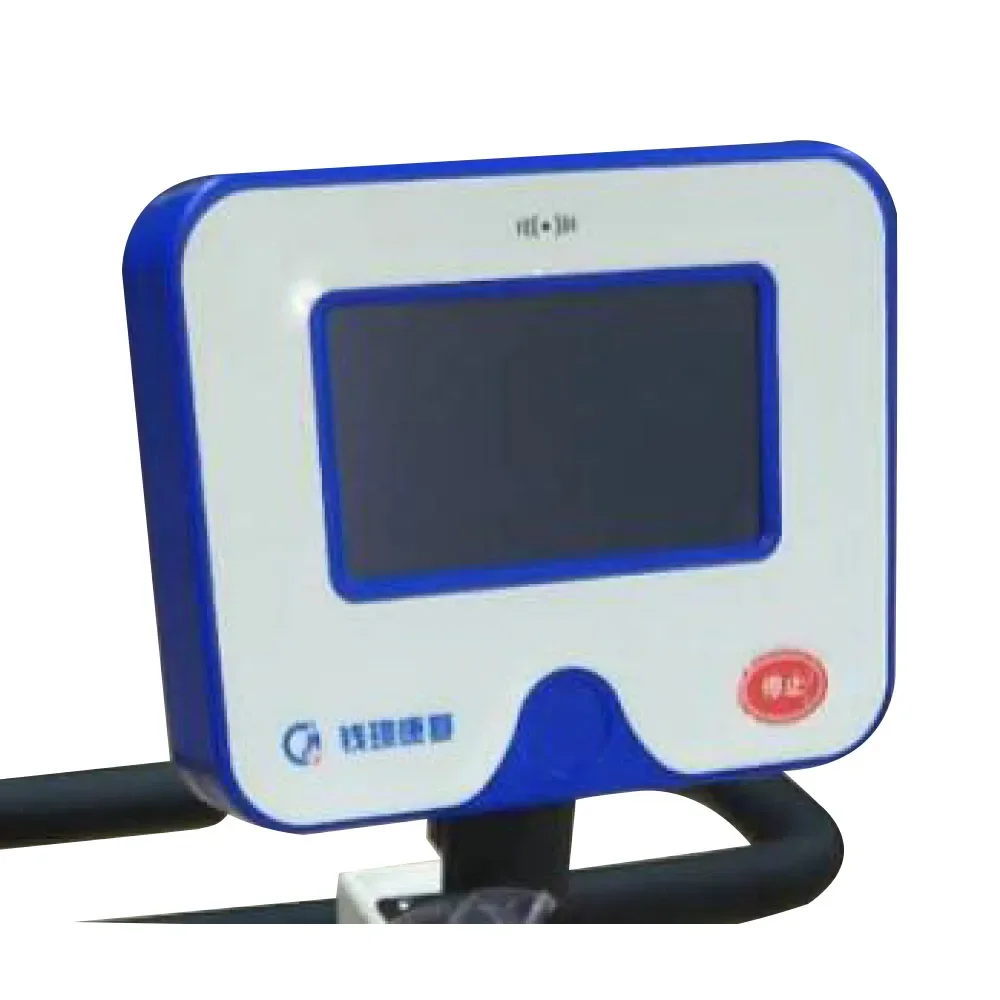

口 360° LCD touch screen,Intuitive operating unit
MovementProtector &SpasmControl

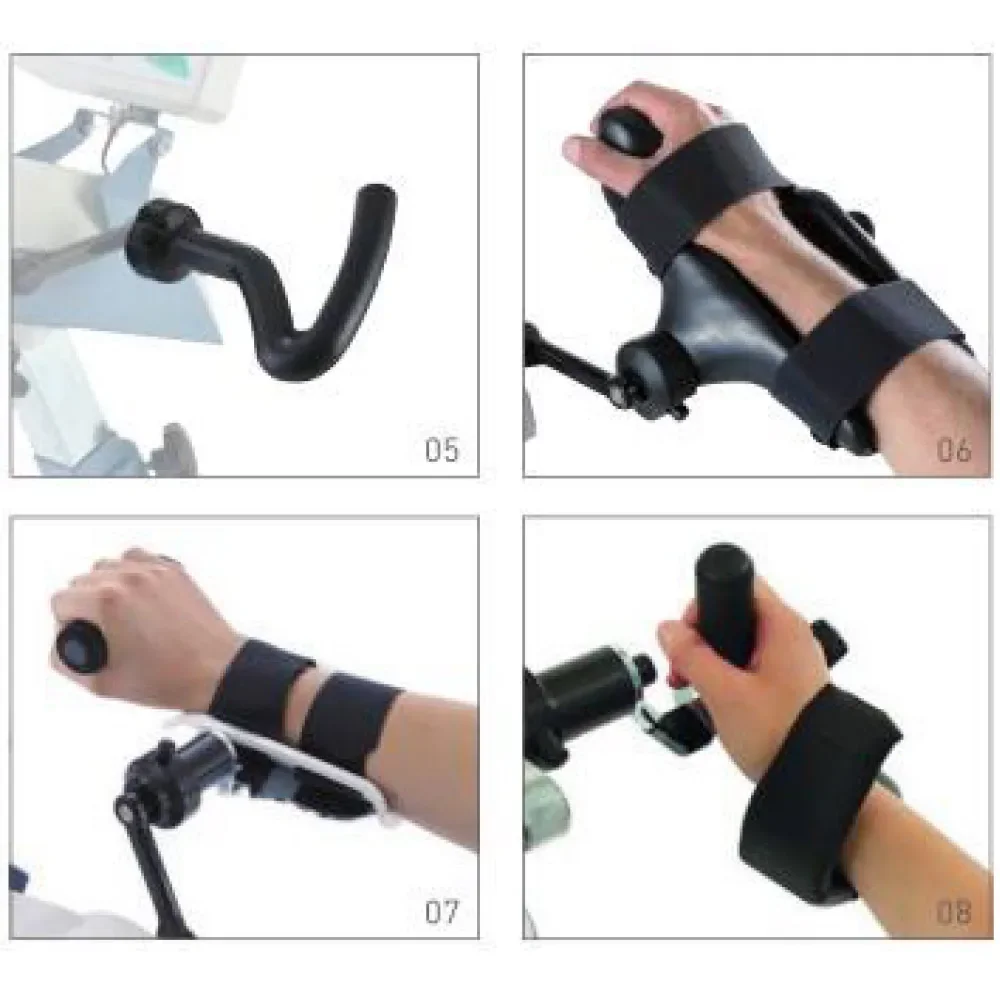

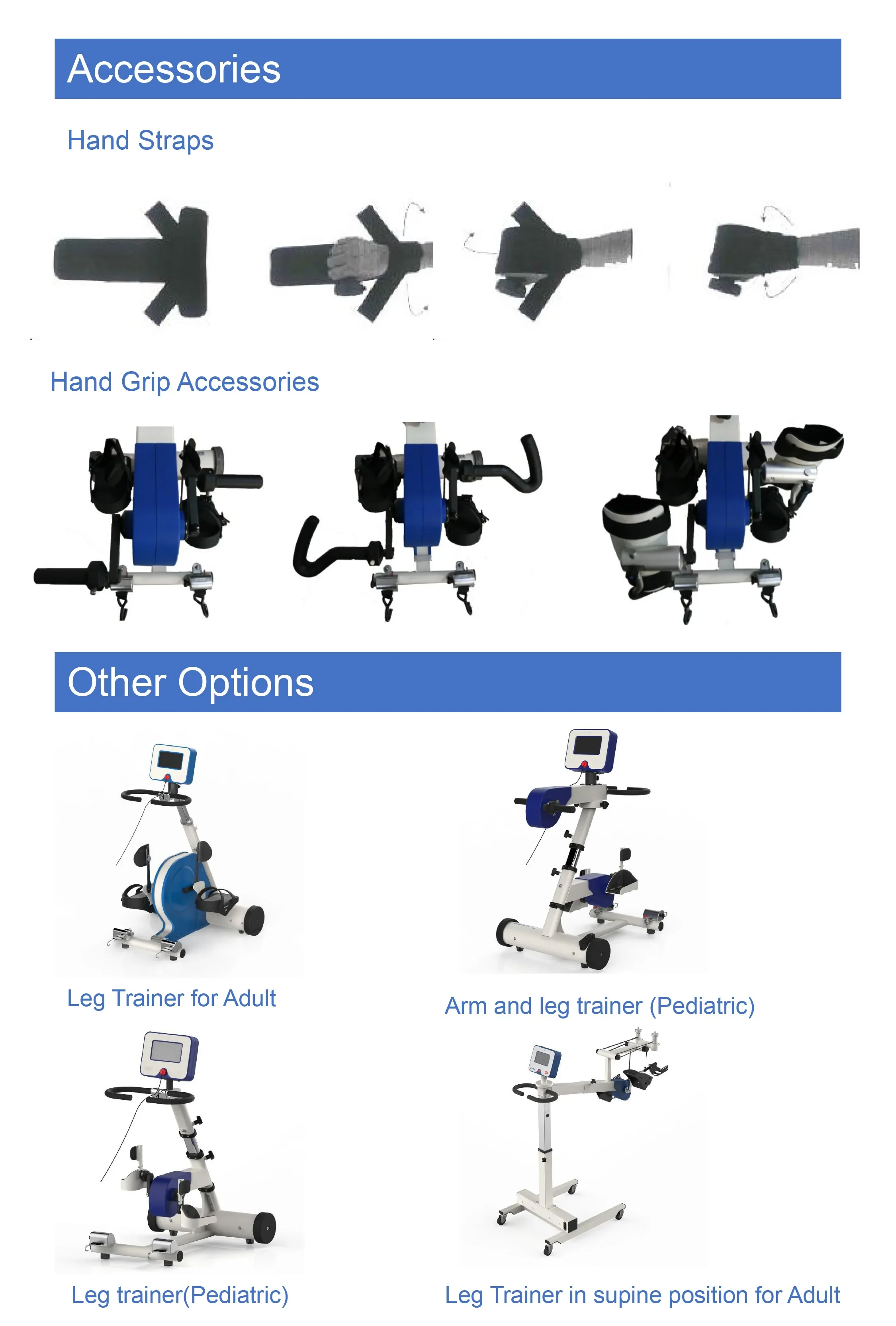

Safe foot straps, the crank arm, forearm support can be replaced.

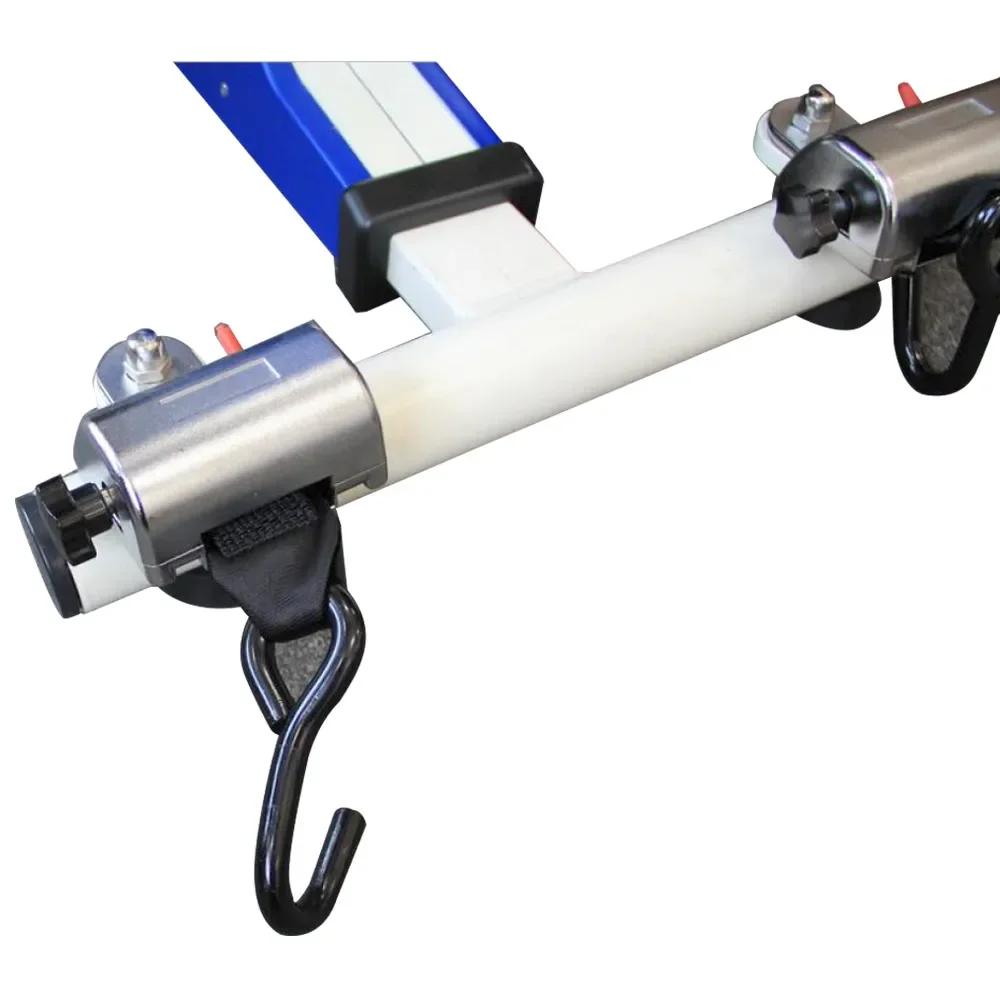

Fixed hook for wheelchairs or chairs.
Level and vertical training of arm and leg can be switched to meet individual
requirements.

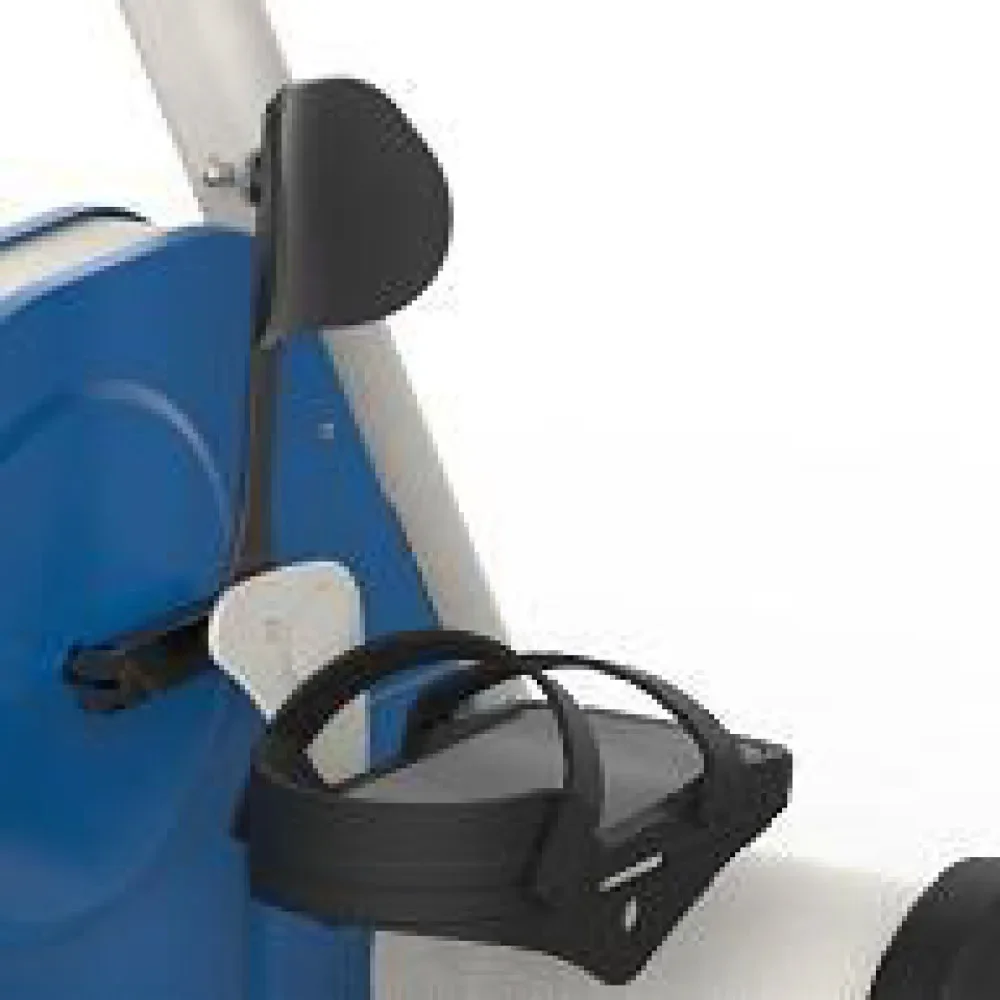

Safety foot shells

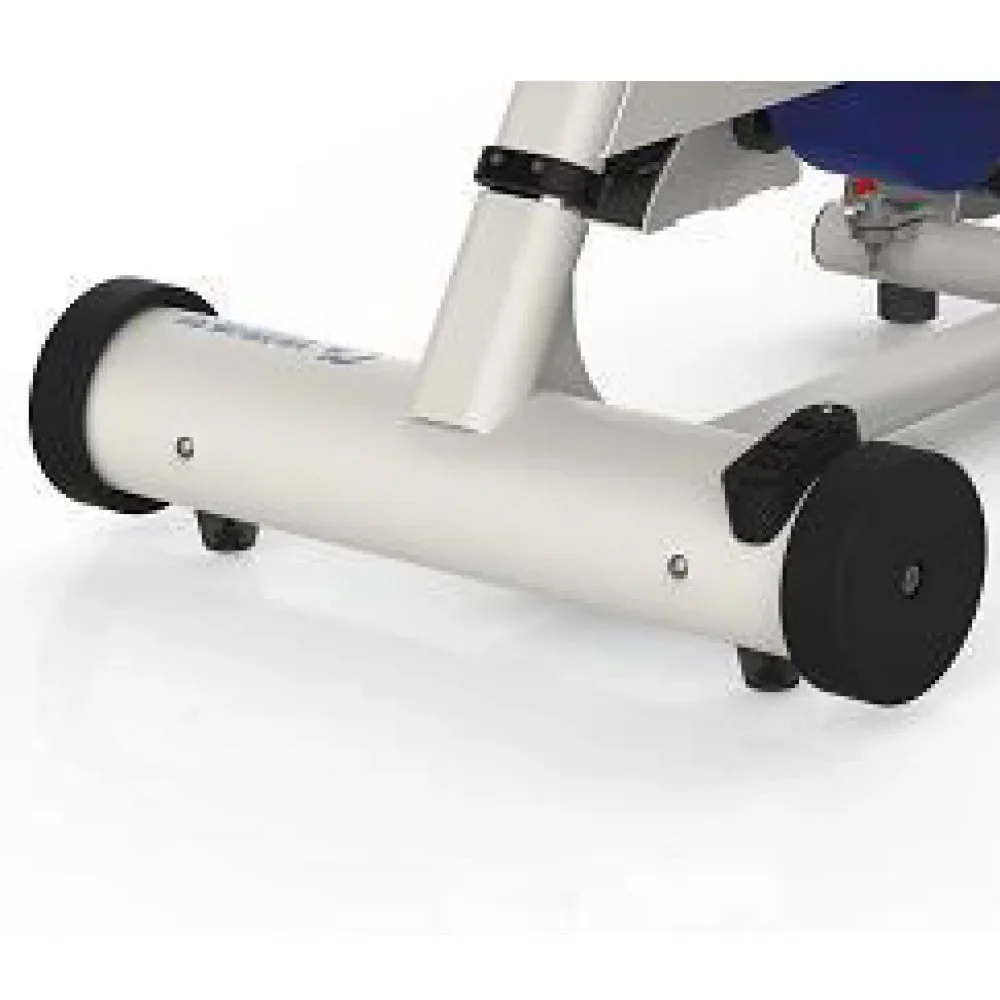

Easy transportation roller
Magnetic control and Sound control

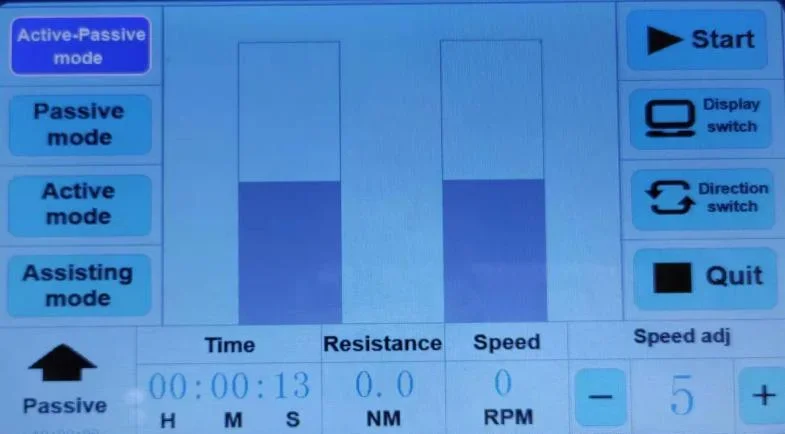

Training Modes
Active Training
This is similar to muscle strength training when riding a bicycle up thehill. A resistance range of 20 finely graded gears is available.
Passive Training with Motor
Legs or arms are moved gently by the motor: This passive training isparticularly beneficial for users with spastic para-lysis.
Motor-assisted Training
The adults can apply their own muscle strength, and with theassistance of the motor as well as the special software, a pedal acceleration can be achieved in many cases.
Active-passive Training
Choose this mode and the user can automatically switch between theactive mode and passive mode according to the user's movement.
EFFECT

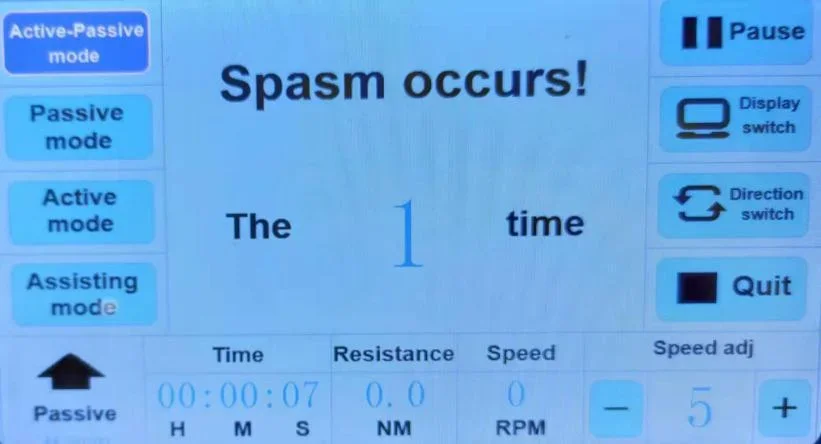

口 Spasm Recognition
Intelligent spasm setting and prection system for safe training.

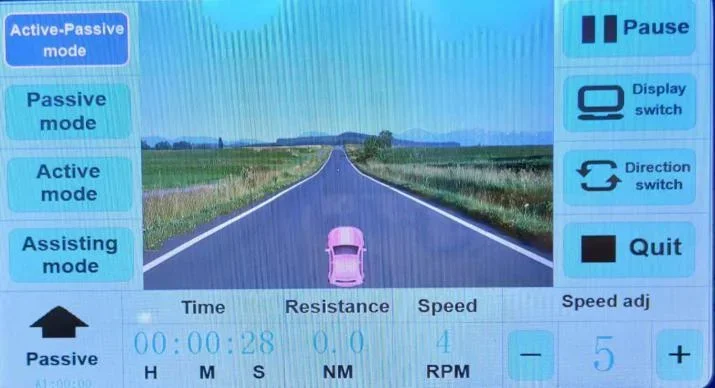

口 Game Training
Inhance the fun of training and improve the initiative of users.
口 Real Time Data
Speed,resistance, time and other data are displayed and adjusted in real time.

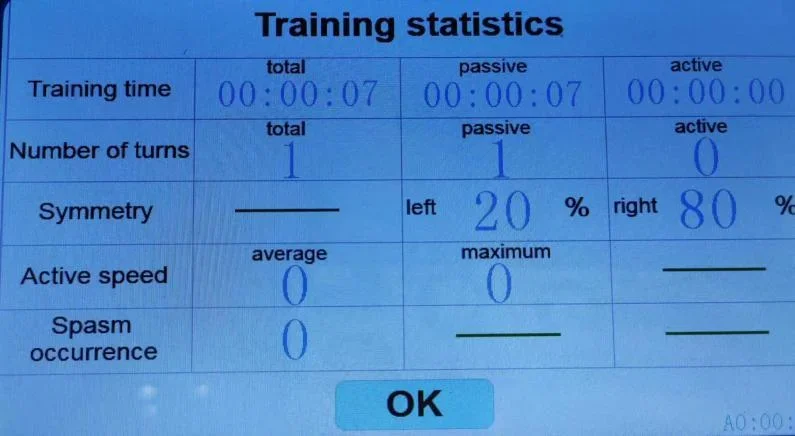

Immediate Feedback
Show the user's training results immediately.

Therapy Goals
口 Reduce spasticity, become more flexible
Loosen up muscles in the case of sudden spasms orgeneral stiffness.
口 Rediscover and build up residual strength
Residual strength which is either not apparent orinsufficient for a complete movement can
be rediscovered and applied.
Counteract the consequences of a lack of movement such as stiff joints, shortened muscles, brittle bones (osteo-porosis), circulatory problems, digestiveproblems.Daily Therapy can possibly avoid unpleasantand cost intensive surgeries or therapies.
口 Promote walking ability
Maintain and build up the basic fitness (i.e. endurance,muscle strength) and the coordination of movement flowrequired for walking. Reduce limiting muscle stiffness.Improve the confidence in walking and the gait pattern.
口 Strengthen the sense of mental well-being
Regular exercise. Do something for yourself. This hasa posi-tive effect on the sense of mental well-being andbrings up the spirits.

AP-ZXQ-05
AP-ZXQ-06
AP-ZXQ-07
AP-ZXQ-08
AP-ZXQ-09
Training Part
Arm and Leg
Leg
Arm and Leg
Leg
leg
Application
Audlt
Audlt
Children
Children
Audlt
Dimensions :L*W*H (mm)
760×710×1160
760×710×1070
820×590×1080
770×600×970
1200×650×1170
360° Touch Screen Size
8inch
8inch
8inch
8inch
8inch
Weight
58kg
45kg
45kg
35kg
58kg
Speed regulation
0~60 rpm
0~60 rpm
0~60 rpm
0~60 rpm
0~60 rpm
Preset a therapy duration
1~200 minutes
1~200 minutes
1~200 minutes
1~200 minutes
1~200 minutes
Regulation of motor power
High-Mid-Low
High-Mid-Low
High-Mid-Low
High-Mid-Low
High-Mid-Low
Resistance Level
0-20 gear
0-20 gear
0-20 gear
0-20 gear
0-20 gear
MovementProtector & SpasmControl
Yes
Yes
Yes
Yes
Yes
Maximum permissible user weight
200kg
200kg
80kg
80kg
150kg
Spasticity level
High-Mid-Low
High-Mid-Low
High-Mid-Low
High-Mid-Low
High-Mid-Low
Handlebar adjustable in height
160mm
140mm
110mm
130mm
/
Shank bracket in height
110mm
110mm
100mm
100mm
80mm
Magnetic Control
Yes
Yes
Yes
Yes
Yes
Vioice Control
Yes
Yes
Yes
Yes
Yes
Input power / VA
200
200
200
200
200
Company Profile

Changzhou Qianjing Rehabilitation Co., Ltd. was founded in 1996 and now has nearly ten subsidiaries under its jurisdiction. It is a company specializing in the research and development, production, sales and service of rehabilitation medical equipment. Business group company. Qian Jing Rehabilitation is one of the earliest manufacturers of rehabilitation assistive devices in China, and has gradually developed into a leading enterprise in China’s rehabilitation and medical care, adhering to the principle of "caring for life, creating and enjoying well-being" The values of "Popularize professional rehabilitation, meet the needs of public rehabilitation, make the life of the needy more quality, and make the resources of the whole society more effective use" For the mission. The company now has many branches including physical therapy, occupational therapy, speech therapy, robot-assisted therapy, special education equipment, rehabilitation aids, etc. The quality of the product system is perfect, and product sales and services extend to more than 20,000 terminal institutions in important areas such as national health care, civil affairs, welfare and pensions, special education, and rehabilitation of the disabled. Users, have a higher reputation in the industry and a more obvious advantage of scale. Qian Jing Rehabilitation currently holds 150 patents, 55 software copyrights, and 68 high-tech products. It is a high-tech enterprise recognized by the state. The company currently has Guangzhou, Shanghai, Chang There are more than 150 R&D personnel in the three prefectures. Based on the accumulation of internal strength in insisting on technological innovation, the company has continued to carry out multi-level cooperation with advanced counterparts in the United States, Germany, Britain, Japan and other advanced peers for many years. "Bring in, go out" The development strategy of the company continues to usher in a gratifying new situation-Qian Jing Rehabilitation, as a representative of a domestic rehabilitation equipment manufacturer, was invited to participate in the meeting attended by the prime ministers of China and Germany in 2015. Under the framework of the Asia-Europe Meeting, the Disabled Persons’ Cooperation and the Global Assistive Device Industry Development Conference, in 2016, was invited to participate in the eighth round of the Sino-US War as a representative of the domestic rehabilitation medical industry. Strategy and economic dialogue activities.
Product packaging
FAQ
Q1:How soon can we get the price?
A:Usually 30 Minutes, not more than 12 hours at latest.
Q2:When can you ship the goods?
A:Usually 8-10 Business Day After Received Your Payment
Q3: What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4: What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery
Q8:Are you manufacture or trading company? How can I trust you?
A:We are a professional manufacture only for surgical instruments. You can check our company name on google. We also invest the adwards on google.
Q9:Can I order 1 or 2 pcs as the same price for the distributors? I am a doctor.
A:Yes.you can. We can not recognize you at the first time. But I recommend you buy it from our distributors which they can offer good service for you.

Q10:Can I print our logo on the products?
A:Yes,free of charge. But we need the authorization letter for the logo from your side. We refuse to make the fake.
Q11:Some company quote me low price and ask 20% higher than first time. Will you?
A:No,we keep the same price for you at least one year. And maybe we will adjust it next year or not. But for the regular
customers, we will not change. Just for new customers.
Q12:What's your product warranty priod?
A:We offer 1 years warranty, during this priod we can fix the product for free but the shipping cost should be bear by your side.
